CCS1 Electric Car Charging Plug

Brand Name : Deligreen

Model Number : V2-DSS-EV32P

Certification : CE,KC,ROHS,MSDS

Place of Origin : China

MOQ : 4pcs

Price : USD69.99/PC

Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 10000PCS/DAY

Delivery Time : 1~2weeks for samples; 4~6weeks for mass production

Packaging Details : Standard export carton

Brand : Deligreen

Grounding : Standard Grounding

Rated Current : 150A

Rated Voltage : 220V-250V

Withstand Voltage : 2000V

Mechanical life : >10000 times no-load socket in/pull out

Certifications : CE, TUV, UL

Case Material : Thermoplastic

Contact Now

Electric vehicle charger parts sae j1772 150a CCS1 electric vehicle plugs



Features of DC Inlet socket:

Meet GB/T 20234.3-2015 regulations and requirements

Rated current: 80A or 125A or 200A or 250A

Nice appearance, hand-held ergonomic design, easy plug

>2000MQ(DC1000V

Insulation resistance: 2000MQ2(DC1000V)

Safety pins insulated head design to prevent accidental direct·<50K

contact with staff

Terminal temperature rise: <50K

Excellent protection performance, protection grade IP55

Withstand voltage: 5000V

U94V-0Mechanical life: no-load plugin/pull out> 10000 times

Case Material: Thermoplastic, flame retardant grade UL94-0

Impat of external force: can afford 1m drop and 2t vehicle run

Iver thermoplastic on the topover pressure

Environmental performance-30℃~+50°℃C

Operating temperature:-30℃~+50℃



Model Selection and the standard wiring :

Model Number of inserts Cable Spec. Cable Diameter:(Orange/black)
NV3-DSD-EV80P 80A 2P(2*0.75mm)2+2P(2*0.75mm)2+3*16mm2+2*4mm2 30+1-o.5mm
NV3-DSD-EV125P 125A 2*35mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 34+1-o.5mm
NV3-DSD-EV200P 200A 2*70mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 41+1-o.5mm
NV3-DSD-EV250P 250A 2*80mm2+2P(4*0.75mm)2+2P(2*0.75mm)2+1*16mm2+2*4mm2 42+1-o.5mm



Electrical performance

1. Rated operating current: 16A/32A/70A

2. Working voltage: 120 ~ 240V AC

3. Insulation resistance:> 1000MΩ (DC500V)

4. Terminal temperature rise: <50K

5. Withstand voltage: 2000V

6. Vibration resistance: comply with the requirements of JDQ53.36.1.1-53.36.1.2

7. Contact resistance: 0.5mΩ Max

Mechanical behavior

1. Mechanical life: no load-swappable> 10000

2. Coupled Insertion Force: 45N <F <80N



Material application

1. Case Material: thermoplastic flammability rating UL94V-0

2. Cuill: copper alloy surface silver-plated

3. seals: rubber or silicone

4. Switch hook: zinc alloy

Ambient temperature

Working environment temperature: -30℃ ~~ +50℃

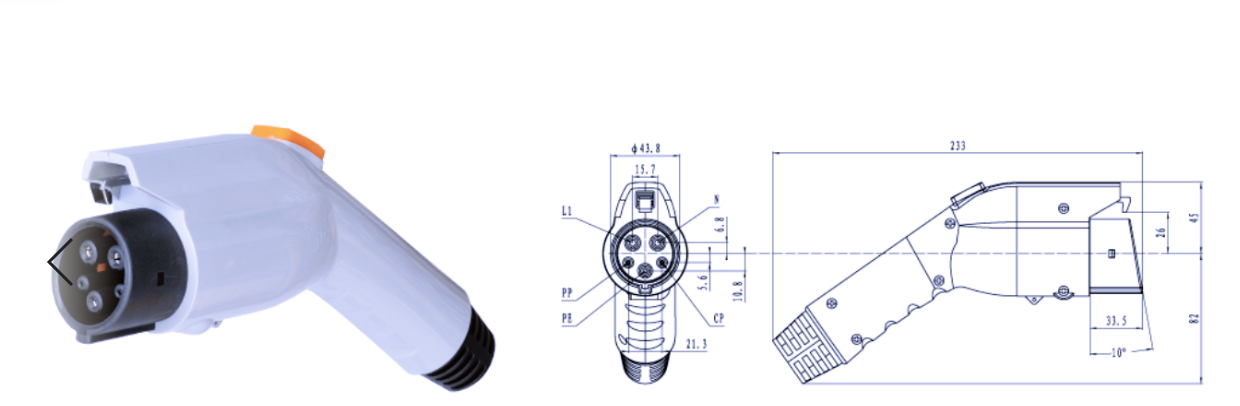

Product Image for Plug

CCS1 Electric Car Charging Plug

SAE J1772 EV Plug T16A/32Amp ype 1 EV Charging Connector:

Meet SAE J1772-2010 (Type 1 Female EV Plug) North America EV Charging standard
Meet USA SAE J1772 EV Charging standard (Type 1 EV Charger Connector)

EV Cable lenght: 3m, 5m, 10m or customized

Color of EV Charging Cord : Orange ,Green and Black.

Type 1 EV Connector V3-DSS-EV16P, V3-DSS-EV32P EV Plug

IEC 62196-2 Type2 Male Plug 40Amp 7KW EV Charging Station end For Electric Vehicle Charger

SAE j1772 Charging Plug 50Amp J1772 SAE Electric Vehicle Conductive Charge Coupler



About the Shipping

We have 10 years of experience in cross-border business, and we have long-term cooperations with many shipping companies,

such as UPS, FedEx, DHL, TNT, EMS.


Delivery Time:

Normally it will take 5~7 days by air

35~40 days by sea



Tracking Number:

You will get the tracking number as oon as we sent the goods to you



About the Payment



Payment Methods:

We offers variety of payment options for your convenience.
Such as Paypal, T/T, etc...


Trade Assurance:

Especially, we support Trade Assurance Services of Alibaba, your orders will be guaranteed by Alibaba, this marks that you can get full compensate from Alibaba if any questions happened, protect your profit and no any loss.



Want to know more about Trade Assurance, please contact us for further info or you can check the brief introduction as following.



RFQ

No.1 Q: Can you guarantee the quality with such a low price?
A: We have signed a long-term strategic cooperation agreement with battery manufacturers. All the prices are the lowest in the market, and cell consistency is good. We buy a lot at one time, so the price is very competitive.
No.2 Q: Can you provide inspection report when delivery?
A: We can provide the manufacturer's test report and the original purchase contract.
No.3 Q: How do you transport lithium batteries?
A: We have professional freight forwarding and export qualifications. We can ensure that the goods are received within 15-20 days after payment is received.
No.4 Q: How are your batteries after sale?
A: We have a 10-year R&D experience of professional and technical team, can remote guidance or help customers solve problems on the spot.
No.5 Q: What's the MOQ for lithium batteries?
A:We Support small order as one piece.
