Name: CATL 32V 314ah CBC00 LiFePO4 Lithium Cbattery Cell For 15kwh
Brand: CATL
Price: 1 USD

Brand Name : CATL

Model Number : 314Ah

Certification : CE/FCC/ROHS

Place of Origin : china

MOQ : 4

Price : negotiable

Payment Terms : D/A, D/P, T/T,paypal

Supply Ability : 1000pcs/day

Delivery Time : 15 days

Packaging Details : carton box

Nominal voltage : 3.2V

Nominal capacity : 314AH

cycle life : 7000 times

Internal impedence : 0.18±0.05mΩ

MCC : 157A

MCDC : 157A

Net Weight : 5.49±0.3Kg

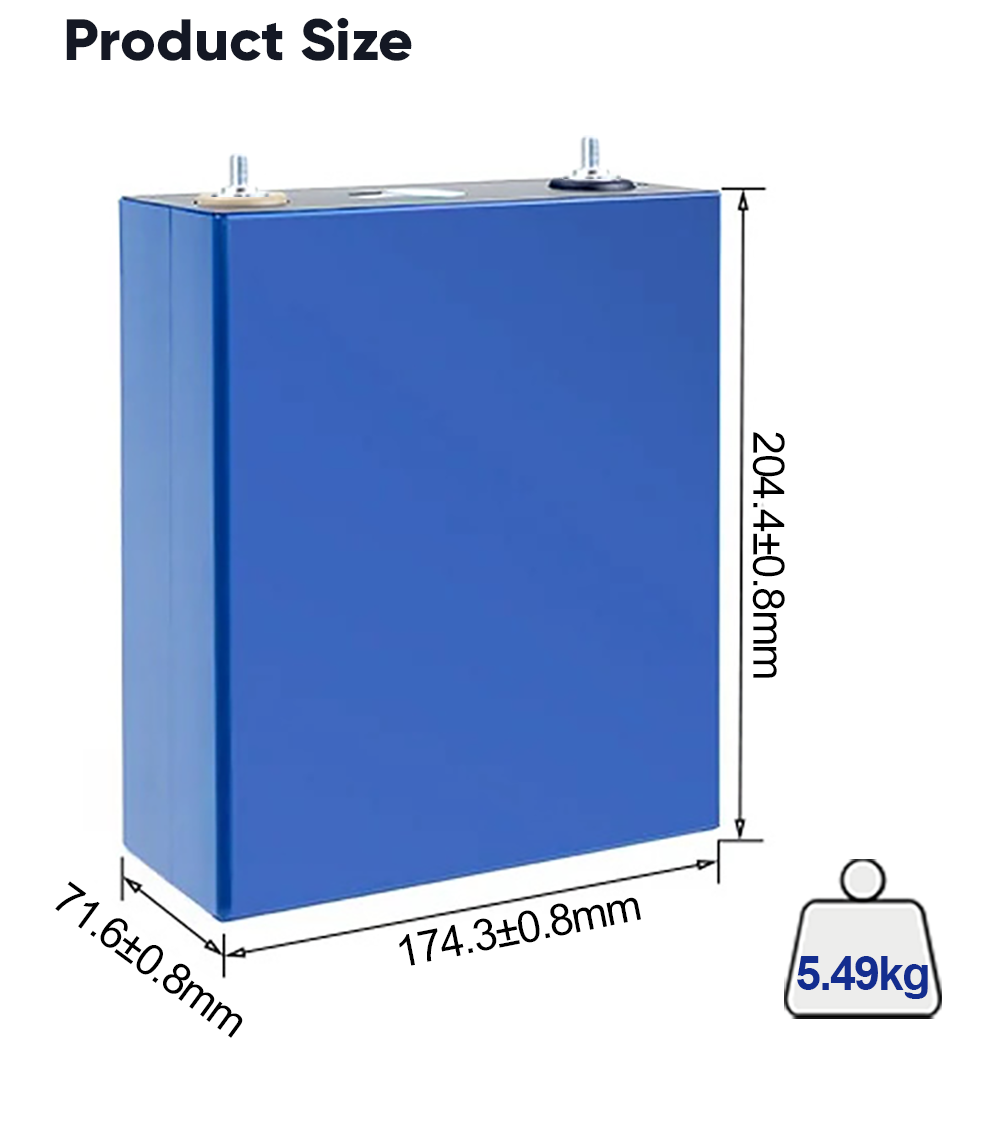

size : 174*72*205mm

Contact Now

CATL 3.2V 314ah CBC00 LiFePO4 lithium cbattery cell for 15kwh

Typical capacity	314 Ah
Typical Energy	1004.8 Wh
Operating voltage	Cell temperature T>0°C 2.5~3.65V T≤0°C 2.0~3.65V
Impedance (1KHz)	0.18±0.05mΩ
Shipping capacity	96±1Ah
Residual capacity loss	Per month ≤3.5%, First Month Per month ≤3.0%, After First Month
Operating temperature (charging)	0~60°C
Operating temperature (discharge)	-20~60°C
Cell Weight	5.49±0.3Kg
Storage Temp	-35~60°C
size	17472205mm
Rest SOC	≥8%
Cycle performance	7000 Cycles@70%SOH
Standard charge Power	0.5P
Max constant charge power	0.5P
Standard discharge power	0.5P
Max constant discharge power	0.5P
Net Weight	5.49±0.3Kg

The temperature is maintained at 25± 2°C, cycle test by the standard charge and discharge method under 300±20Kgf

preload, Fading to 70% of standard capacity
